Vertical Lift Modules

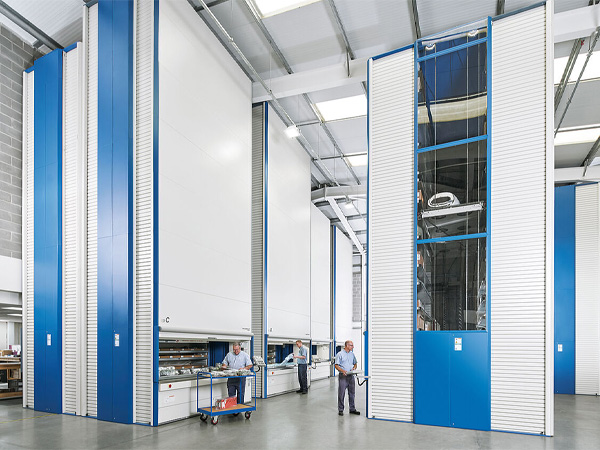

Each vertical lift module is constructed of an industrial steel rack structure with varied payload capacities depending on the manufacturer and the application for use. Each rack frame is composed of front and rear parallel sections for storage, with an extractor (elevator) mechanism aisle in between.

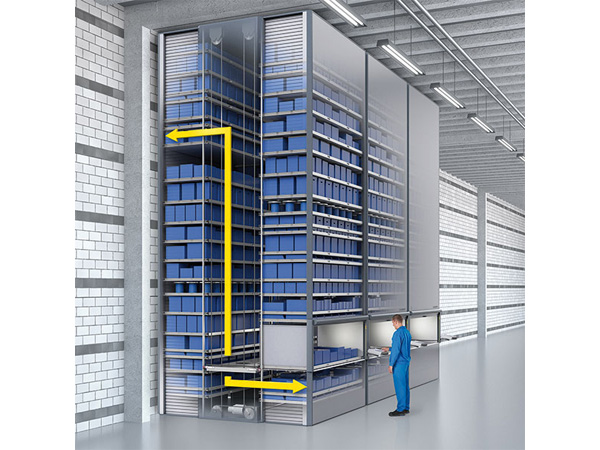

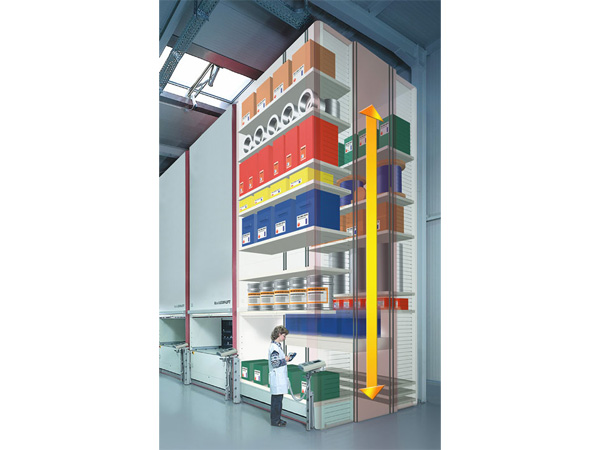

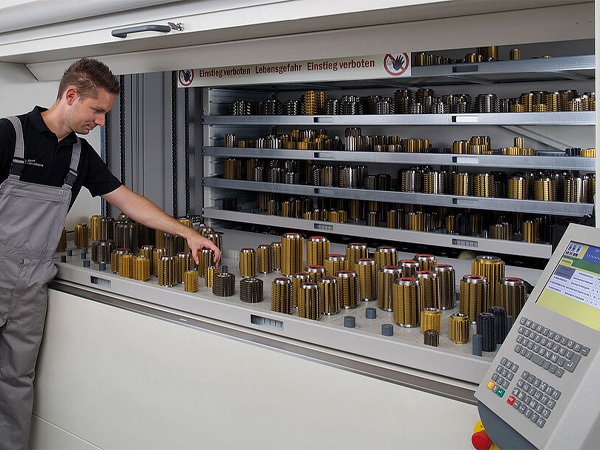

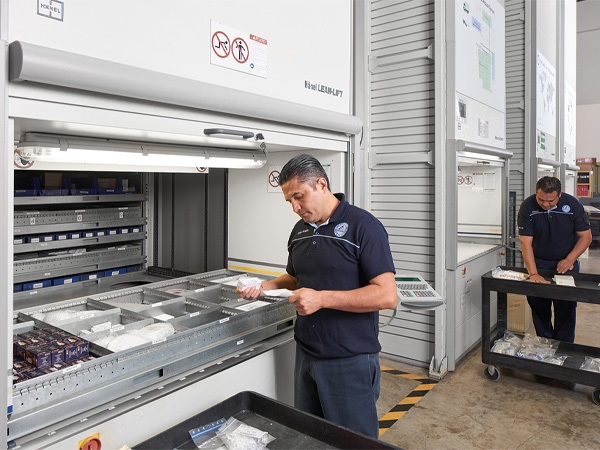

The extractor mechanism travels vertically in the extractor aisle between the front and rear storage sections, to retrieve/deposit part trays to their assigned location, or the delivery/access window. Once the extractor mechanism located the appropriate tray location or delivery/access window, it extracts or deposits the tray at that location.
Benefits Include:
- Ability to utilize unused vertical space
- Improved picking accuracy & speed
- Flexible design to meet user-defined requirements
